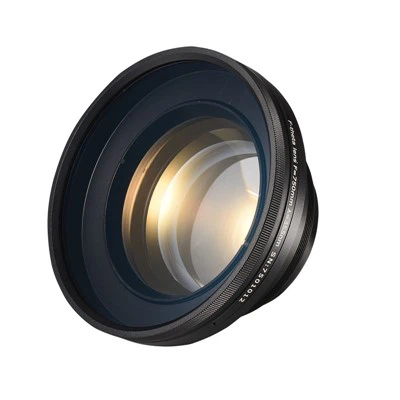

CO2F-theta lens, tseem hu ua CO2f-theta lo ntsiab muag, yog ib qho tseem ceeb nyob rau hauv ntau laser txiav, kos, thiab engraving tshuab. Cov lo ntsiab muag no tau tsim tshwj xeeb los xyuas kom meej tias txoj hauj lwm ntawm qhov taw tes hauv cov duab teb scales linearly nrog cov tswv yim scan kaum θ. Qhov no ua rau lawv yog cov cuab yeej tseem ceeb rau kev ua cov ntawv thov laser precision uas xav tau cov txiaj ntsig raug thiab zoo ib yam.
Peb cov CO2f-theta lo ntsiab muag muaj nyob rau hauv ntau qhov ntau thiab tsawg los ua kom tau raws li qhov xav tau ntawm ntau yam laser txiav thiab cim tshuab. Lawv tau tsim los ntawm cov khoom siv zoo, ua kom muaj kev ua haujlwm zoo thiab ua haujlwm ntev. Peb muab lo ntsiab muag rau ob qho tib si CO2thiab fiber ntau lasers, nrog rau cov kev cai tsim lo ntsiab muag rau cov kev siv tshwj xeeb.
F-theta lo ntsiab muag tshwj xeeb yog tsim los kom txoj hauj lwm ntawm qhov taw tes hauv daim duab teb scales linearly nrog lub lens 'input scan kaum sab xis θ. Lub lens f-theta yog ib hom lens uas feem ntau siv hauv laser txiav, kos, thiab engraving tshuab. SOING muab ntau yam ntawm f-theta lens ntawm qhov sib txawv wavelengths nrog txhua yam ntawm qhov loj me.
Qhov zoo
1. Muaj zog heev
2. Muaj nyob rau hauv qhov sib txawv wavelengths 10.2,10.6, 9.3
3. Lub sijhawm luv luv
4. Kev daws teeb meem raug nqi
5. Tau customized, Hoobkas ncaj qha
Daim ntawv thov
Lub lens no tsom lub laser beam scanned nrog lub scanner, thiab lwm yam. Nws yog siv rau kev kub ceev micro drilling ntawm cov ntawv luam ntawv Circuit Court boards, high speed marking ntawm electronics thiab resin qhov chaw, thiab lwm yam.
Lub lens no txo qhov kev cuam tshuam thiab ua rau qhov teeb meem laser beam yuav luag perpendicularly rau cov khoom ua haujlwm. Nws yog tsim rau kev ua xws li laser micro drilling. Lub lens no haum rau cov cim, cov duab kos, thiab lwm yam uas koj xav luam theej duab thaj tsam dav sai.
Specification
10.6um Ib Element
|
Tshooj No |
Lens Txoj kab uas hla (mm) |
Focal Ntev (mm) |
Lub cheeb tsam (mm) |
Input Beam (mm) |
Ua haujlwm nrug (mm) |
Scan Angle (degree) |
|
JG-SL1-10 6-50-35-10 |
45 |
50 |
35*35 |
10 |
52.7 |
25 |
|
JG-SL1-10 6-75-50-12 |
48 |
75 |
50*50 |
12 |
75.9 |
25 |
|
JG-SL1-10 6-100-70-8 |
36 |
100 |
70*70 |
8 |
107.4 |
25 |
|
JG-SL1-10 6-100-70-10 |
45 |
100 |
70*70 |
10 |
107.4 |
25 |
|
JG-SL1-10 6-100-70-12 |
48 |
100 |
70*70 |
12 |
107.4 |
25 |
|
JG-SL1-10 6-150-110-8 |
36 |
150 |
110*110 |
8 |
152.7 |
25 |
|
JG-SL1-10 6-150-110-10 |
45 |
150 |
110*110 |
10 |
152.7 |
25 |
|
JG-SL1-10 6-150-110-12 |
48 |
150 |
110*110 |
12 |
152.7 |
25 |
|
JG-SL1-10 6-200-140-10 |
45 |
200 |
140*140 |
10 |
204.3 |
25 |
|
JG-SL1-10 6-200-140-12 |
48 |
200 |
140*140 |
12 |
204.3 |
25 |
