70W CO2laser qhov chaw yog ib tug haib thiab npaum cov cuab yeej uas yog dav siv nyob rau hauv lub laser npav, txiav, thiab vuam kev lag luam. Qhov no laser qhov emits ib lub teeb ntawm lub teeb ntawm lub wavelength ntawm 10.6 um, uas ua rau nws zoo tagnrho rau kev ua ntau yam ntaub ntawv xws li ntoo, yas, thiab hlau.

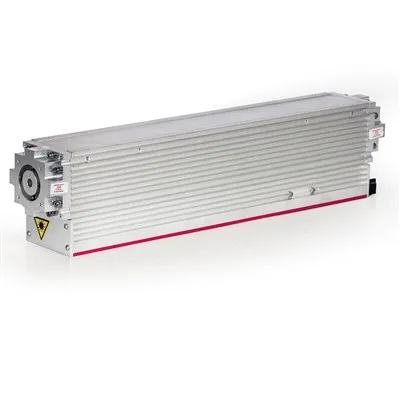

Lub T70A CO, lasers yog kaw-tawm, RF-excited CO2, lasers, muaj peev xwm ntawm nruam nthwv dej (CW) lossis kev ua haujlwm modulated. T70A CO2, lasers yog raws li ib tug yoj qhia resonator tsim carbon dioxide (CO2,) lasers uas ua haujlwm ntawm wavelengths ntawm 10.6um, 10.2um thiab 9.3um.
T70 series CO2, Lasers muab kiv cua txias thiab dej txias xaiv.
Qhov zoo
1. Txhim khu kev qha 24x7 Kev Ua Haujlwm: suav nrog peb rau kev ua haujlwm tsis nres, txhim khu kev qha. Peb cov lasers yog engineered los khiav 24/7 nyob rau hauv kev lag luam ib puag ncig, kom ntseeg tau tias koj cov hauj lwm yeej tsis nco ib tug yeej.
2. Compact thiab Lightweight: Kev sib koom ua ke yeej tsis yooj yim dua. Lawv qhov loj me thiab lub teeb yuag tsim tso cai rau seamless koom ua ke rau hauv koj lub teeb, optimizing koj workflow.
3. Kev Tsim Kho Tsawg: Hais lus zoo rau kev saib xyuas tsis tu ncua. Peb lub tshuab cua txias tsim minimizes downtime.
Daim ntawv thov
Ib cheeb tsam uas 70W CO2laser pom daim ntawv thov tseem ceeb yog laser npav. Cov tshuab no tau txais txiaj ntsig zoo kawg vim tias nws tso cai rau tus neeg siv kos npe rau ib yam khoom yam tsis tau rhuav tshem cov khoom hauv qab. Qhov no ua rau nws tsim nyog rau kev kos ntau yam khoom xws li ntoo, iav, ntawv, thiab yas.
CO2lasers kuj feem ntau siv rau laser engraving daim ntaub ntawv. Engraving yog txheej txheem ntawm kev txiav grooves rau hauv cov khoom siv los tsim cov qauv lossis tsim. CO2lasers tuaj yeem xa cov kev ua haujlwm siab thiab raug, ua rau nws mus rau kev xaiv rau kev cai kos npe thiab kos duab precision daim ntaub ntawv. Laser engraving yuav siv tau los tsim intricate designs ntawm ntau qhov chaw, xws li tawv, hlau, thiab ntoo.
Specification
|
Qauv nab npawb |
T70A-10.6 |
S70L-10.6 |
|
Lub wavelength |
10.6μm |
10.6μm |
|
Fais fab tso zis |
＞70W |
|
|
Lub zog ruaj khov |
±5% |
|
|
M2 |
＜1.2 |
|
|
Hom Zoo |
TEM00 |
|
|
Beam Lub xub pwg dav |
1.8±0.2 |
|
|
Beam sib txawv |
7.5mrad (tag nrho lub kaum sab xis) |
|
|
Polarization |
50: 1 Linear, Vertical |
|
|
Kev khiav hauj lwm zaus |
0-25kHz |
|
|
Txias |
huab cua |
|
|
Input Voltage / Tam sim no |
48 VDC / 50A |
|
|
Qhov Loj (L x W x H) |
537mm x 93mm x 155 hli |
564mm x 93mm x 102 hli |
